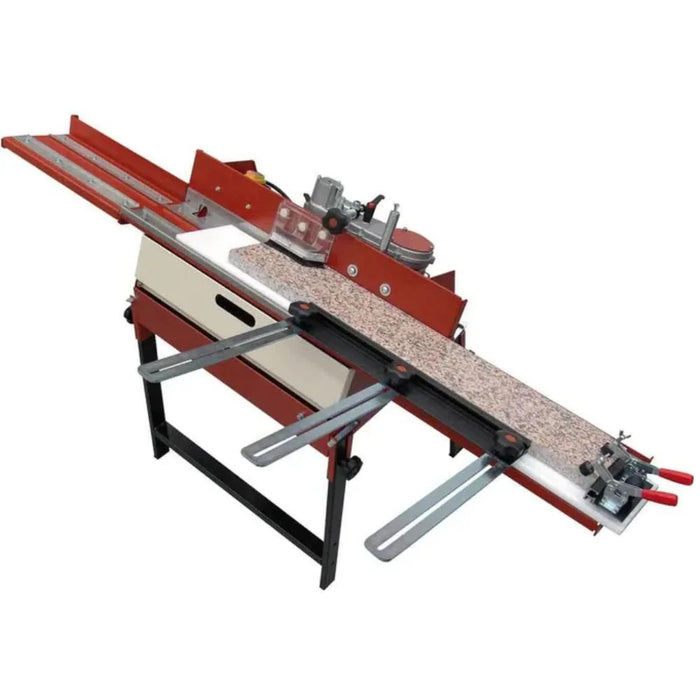

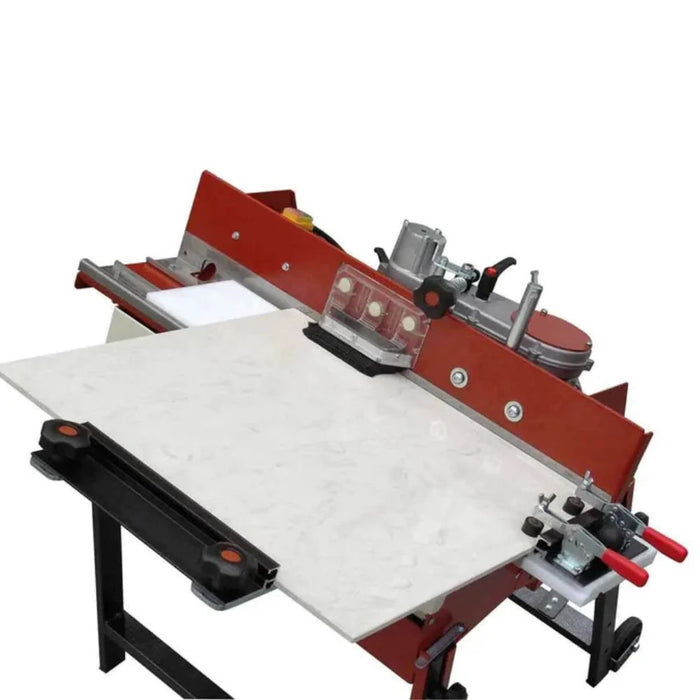

Raimondi Bulldog Advanced Bullnose Machine

$3,300.00 USD
SKU BD1WD
Free Freight Item The Tool Locker

Features

  • Profile or bevel edges of porcelain, ceramic, stone, marble, granite and more
  • Powerful single motor application provides 3 levels of finishing
  • 31" maximum profiling length
  • Can work on materials up to 1-3/16" thick
  • Heavy duty water pump will cool down profile wheels

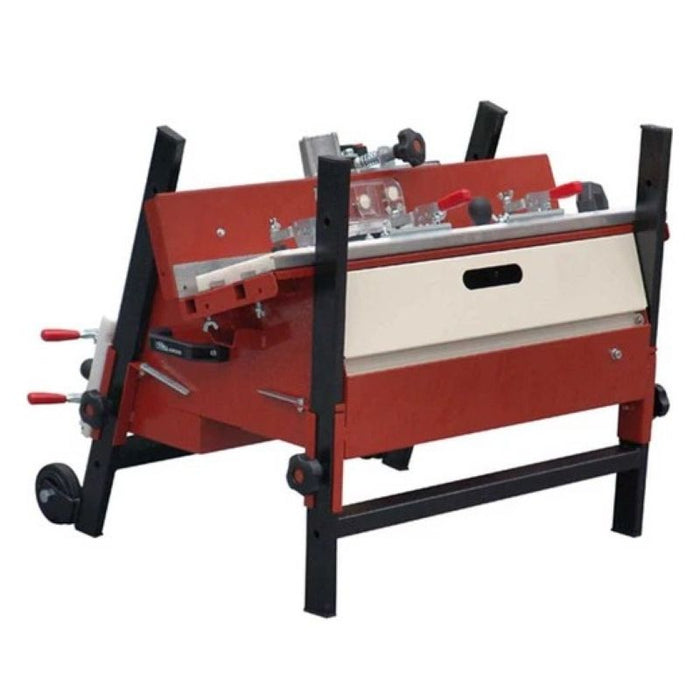

  • Telescopic legs equipped with a wheel kit for easy transportation and set up
  • Machine has 20 mm arbor and wheel distance is adjustable
  • Clamping mechanism and adjustable pressure wheel will not allow material to shift
  • Magnetic splash guard keeps water and debris away from the operator
  • Includes 31" sliding table, tool kit, dressing stone and operator's manual
  • All bullnose wheels are sold separately

Details

Raimondi Bulldog Advanced Bullnose Machine will profile a perfect half/full bullnose, 45° bevel (Jolly) or finished flat edge on marble, porcelain tile or natural stone up to 1-3/16" (30 mm) thick. This machine provides a 31-1/2" maximum length of shaping and it's single motor in-line connection supplies 3 levels of finishing for milling, rough finishes and polishing. The single motor BD1WD is equipped with a powerful 1-1/2 hp electric motor that runs up to 3,360 RPM at 110 volts.


Raimondi Bulldog Specifications
Power 1-1/2 hp
Voltage 110 V
Max Profiling Length 31-1/2" (80 cm)
Max Profiling Depth 1-3/16" (3 cm)
Min Tile Width 1-1/2" (4 cm)
Max Tile Width 23-5/8" (60 cm)
RPM (Motor/Wheel) 3360/5370
Arbor 20 mm
Weight 165 lb
