Husqvarna PG 510 Floor Grinder
by Husqvarna
Join the Club & Get Up to 7% Additional Discount on this Brand & Free Freight
SKU 967932005
Check some of the members benefits:
- Free Shipping on all Orders
- Exclusive Promotions
- Free Training Sessions
- Products Drawings
- Discount Codes
- Invitations to Events
- Fast Checkout
- Networking Opportunities
Features
- Performs all types of applications such as concrete grinding, coating removal, concrete repair and polishing

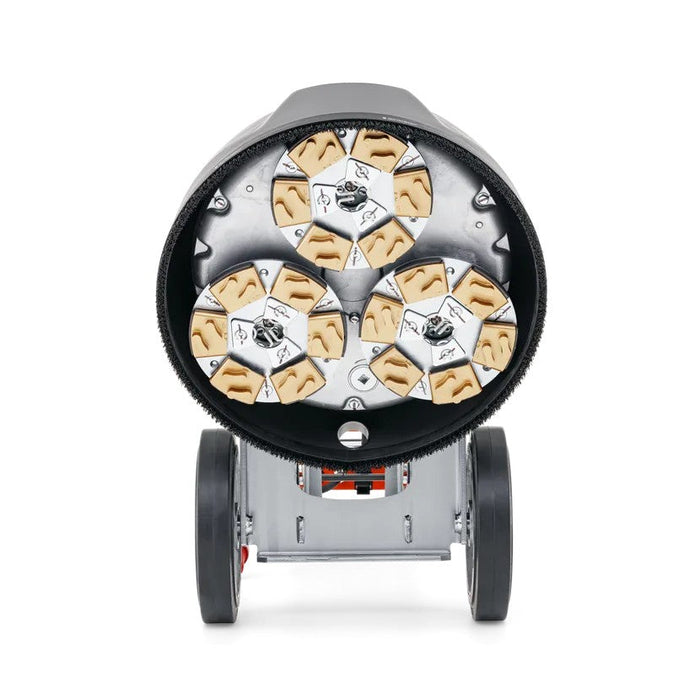

- Three grinding discs and total grinding width of 20 in (515 mm)
- Grinding head is effectively sealed to keep dust and moisture out to extend the useful life of the bearings and belts

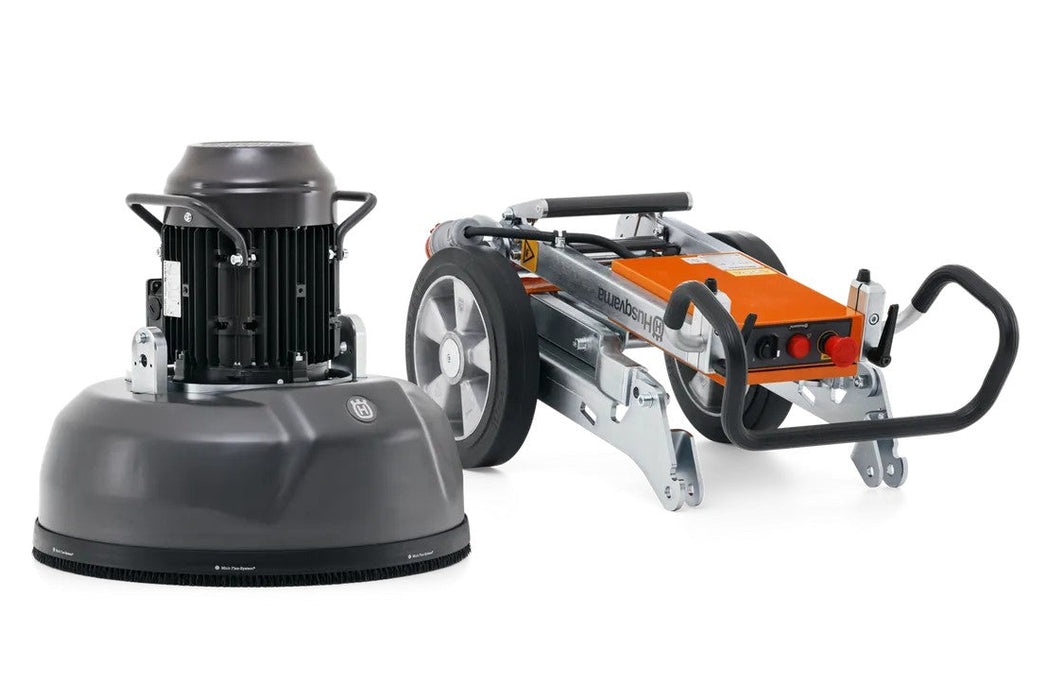

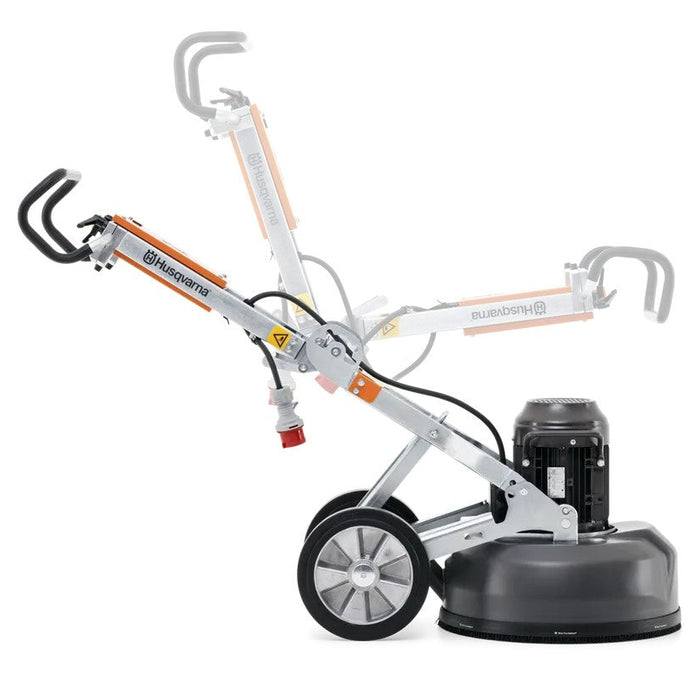

- Quick-release couplings allows the grinder head to be separated from the chassis, which can then be easily folded for transport
- User-friendly logical control panel with overload protection - speed is fixed and no settings are required
- Self-adjusting floating cover with brush skirt follows the surface of the floor and the tight seal prevents dust from entering the working environment
- Equipped with Redi Lock®, an instant and hassle-free system for changing diamond tooling
- 50' 10 gauge extension cord included
- Diamond segments and accessories sold separately
Details
The PG 510 is a planetary floor grinder with three grinding discs and a total grinding width of 515 mm. It is suitable for removing coatings, grinding and polishing concrete, etc. The grinding head on the PG 510 is effectively sealed to keep dust and moisture out. This greatly extends the lifetime of the bearings and belts. The PG 510 is ideal as a rental machine and suitable for both professional and semi-professional work. Quick-release couplings allow the grinding head to be separated from the chassis which can then be easily folded for transport. The grinder also has a digital hour meter.
| MPN | 967932005 | 967932004 | 967932003 |
| Power Supply | 1-phase | 3-phase | 3-phase |
| Voltage | 220-240 V | 220-240 V | 440-480 V |
| Power | 3 hp (2.2 kW) | 5.4 hp (4 kW) | 5.4 hp (4 kW) |
| Rated Current | 15 amps | 15 amps | 7 amps |
| Plug Type | L6-30 | 15-20 | L16-20 |
| Grinding Disc Width | 20" (515 mm) | 20" (515 mm) | 20" (515 mm) |
| Grinding Disc | 3x9 (230 mm) | 3x9 (230 mm) | 3x9 (230 mm) |
| Grinding Segment Capacity |
18 | 18 | 18 |
| Grinding Pressure | 145 lb (66 kg) | 176 lb (80 kg) | 176 lb (80 kg) |
| Grinding Disc Speed | 669 RPM | 669 RPM | 669 RPM |
| Direction of Rotation | Counter Rotation | Counter Rotation | Counter Rotation |
| Dust Port Size | 2" (51 mm) | 2" (51 mm) | 2" (51 mm) |
| Dimensions | 60" x 21.8" x 37.4" (1,525 x 555 x 950 mm) | 60" x 21.8" x 37.4" (1,525 x 555 x 950 mm) | 60" x 21.8" x 37.4" (1,525 x 555 x 950 mm) |
| Weight | 265 lb (120 kg) | 293 lb (133 kg) | 293 lb (133 kg) |
