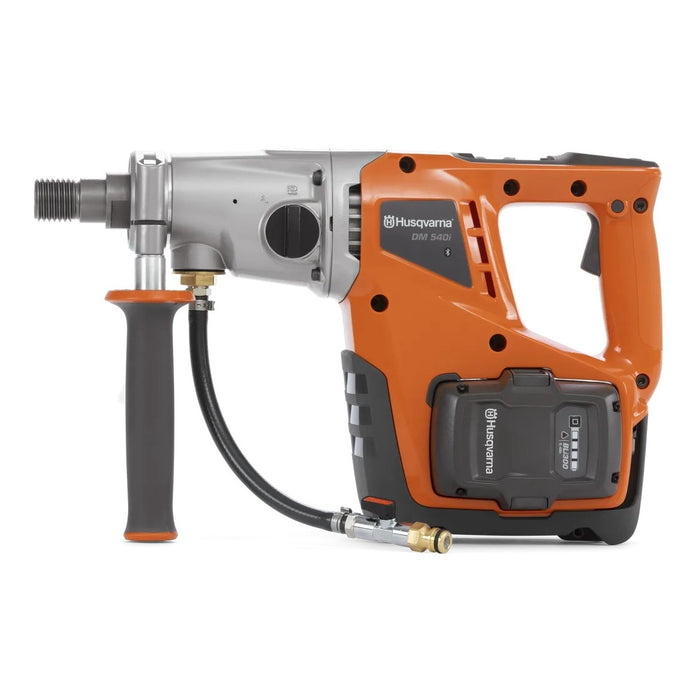

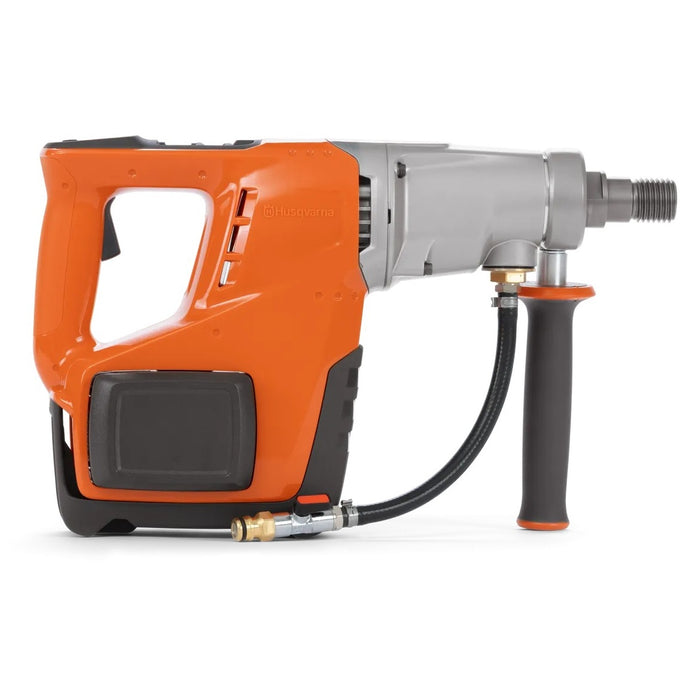

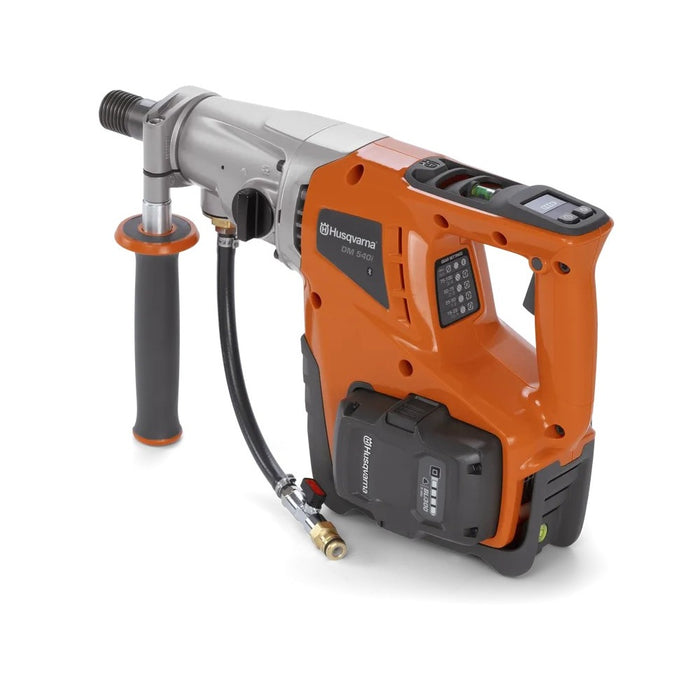

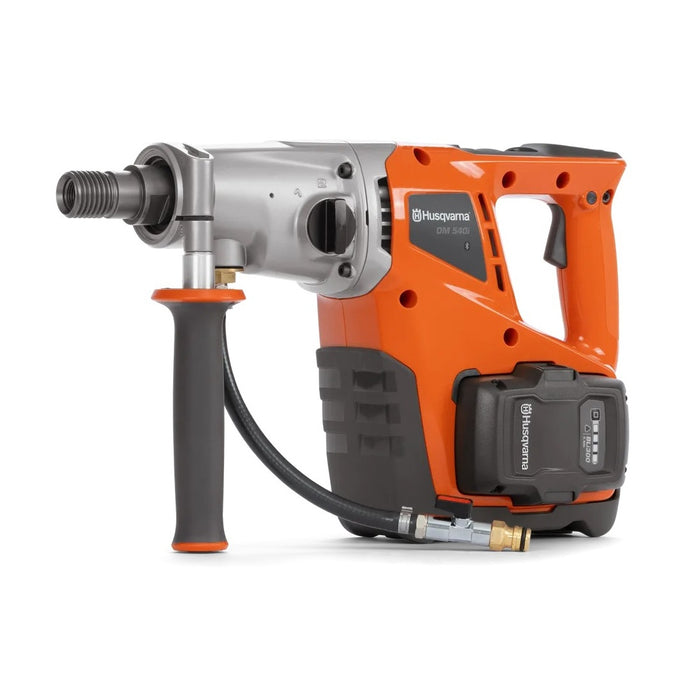

Husqvarna DM 540i Battery Handheld Core Drill
Features
- Used in light reinforced concrete for both wet and dry drilling
- Can be used outdoors or indoors
- Ergonomic design, low weight and a well-balanced body
- Can be attached to drill stand for added stability
- Motor stops quickly if the drill gets stuck
- Advanced brushless motor is 25 % more efficient than a standard brush motor
- Side-fed battery placement maximizes cooling and minimize slurry and dust containment
- BLi-series batteries are easily removed and replaced
- Doubles as a concrete mixer with a simple adapter.
- Gardena water hose connection
- Drill bits and stand sold separately
Details

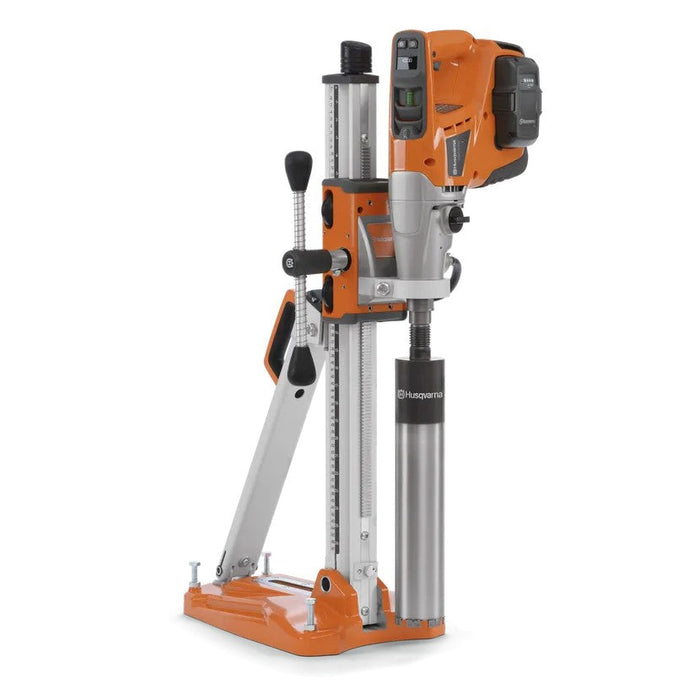

Husqvarna DM 540i is a powerful battery drill motor optimised for handheld drilling of diameters up to 75 mm. It can be used in light reinforced concrete for both wet and dry drilling and other suitable materials include bricks and light weight blocks. DM 540i can be used with the DS 150 drill stand for drilling of diameters up to 100 mm and with built-in connectivity, you can easily monitor machine location, runtime, service intervals and receive wireless updates through FOTA (firmware over the air). Power is supplied by BLi-X-series batteries and the machine is compatible with Husqvarna BLi220X/BLi330X batteries. Ease of use and exceptional ergonomic characteristics such as low weight and a well-balanced machine body make it an excellent choice for drilling underneath sinks, in narrow corners or other tight spaces. Other applications include plumbing pipes, electrical sockets, cables, ventilation and air conditioning installations.
| MPN | 970493706 |
| Power Source | Battery |
| Battery Eco System | BLi-X |
| Max Drill Bit Diameter Handheld | 3" |
| Max Drill Bit Diameter with Stand | 4" |
| Recommended Minimum Drill Bit Diameter | 0.59" |
| Coolant | Wet / Dry |
| Number of Gearbox Speeds | 2 |
| Number of Electronical Gearbox Speeds | 2 |
| Spindle Speed Unloaded Gear 1 | 1,400 rpm |
| Spindle Speed Unloaded Gear 2 | 4,450 rpm |
| Water Connection | Gardena Male |
| Max Water Pressure | 43.5 psi |
| Mounting Collar | 2.36" |
| Inner Spindle thread | G 1/2" |
| Outer Spindle Thread | 1-1/4" -7 UNC |
| Dimensions | 17.3" x 4.3" x 10.8" |
| Weight | 10.8 lb |
