Gundlach Quick-Pitch Standard Shower Kit
by Gundlach
SKU QPK-101
Check some of the members benefits:
- Free Shipping on all Orders
- Exclusive Promotions
- Free Training Sessions
- Products Drawings
- Discount Codes
- Invitations to Events
- Fast Checkout
- Networking Opportunities
Features
- Mud bed shower floor drainage kit that creates a perfect shower floor-base slope to drain the water from the shower floor
- Used for standard 36″ x 60″ shower areas with a centered drain, or custom shower areas where the drain is within 36″ of each wall
- Standard float sticks are 36″ long and go from 1″ to 1-3/4″
- Float sticks attach in any of the 24 slots on the Center Ring
- Easy to cut lengths needed
- Extended Kit (ref. EFS-103) for shower lengths up to 72" available

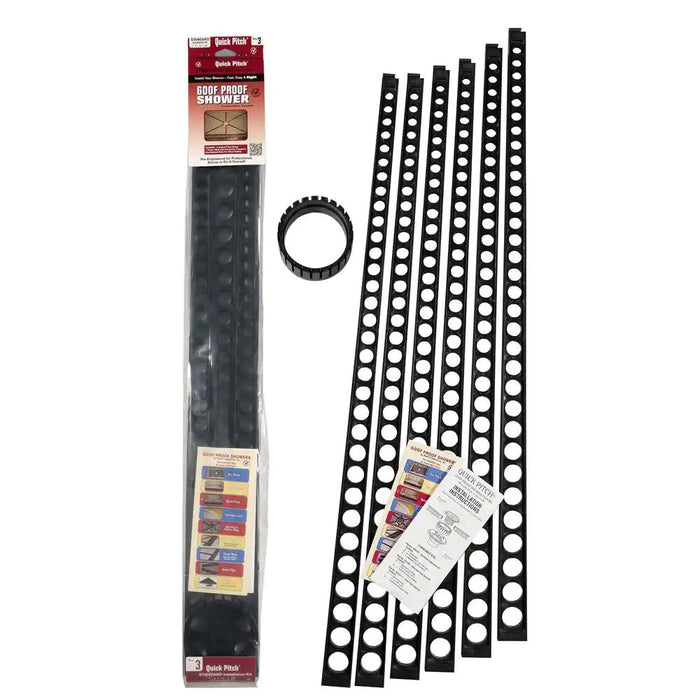

- Includes: (1) center ring, (6) standard float sticks, installation manual
Description
The Quick Pitch Float Stick System permits easy construction of shower floors with the proper minimum water drainage slope of 1/4″ per 12″ run. With this time-saving system there is now no chance for an error in measurement, or the need for a level, to achieve a properly sloped shower floor. The Quick Pitch Float Stick System uses a Center Ring and tapered Float Sticks to assure the correct drainage slope in standard or custom shower areas with walls up to 6′ in any direction from the floor drain. This system does not add to the pan liner pre-slope as the Center Ring sits on top of the drain flange bolts.
