Gundlach Quick-Pitch Extended Shower Kit
by Gundlach
SKU EFS-103
Check some of the members benefits:
- Free Shipping on all Orders
- Exclusive Promotions
- Free Training Sessions
- Products Drawings
- Discount Codes
- Invitations to Events
- Fast Checkout
- Networking Opportunities
Features
- For engaging an additional 36" of screeding guide to the end of the Standard Quick-Pitch (ref. QPK-101) stick length
- Add a seamless continuation of slope when walls are up to 72" from the drain location

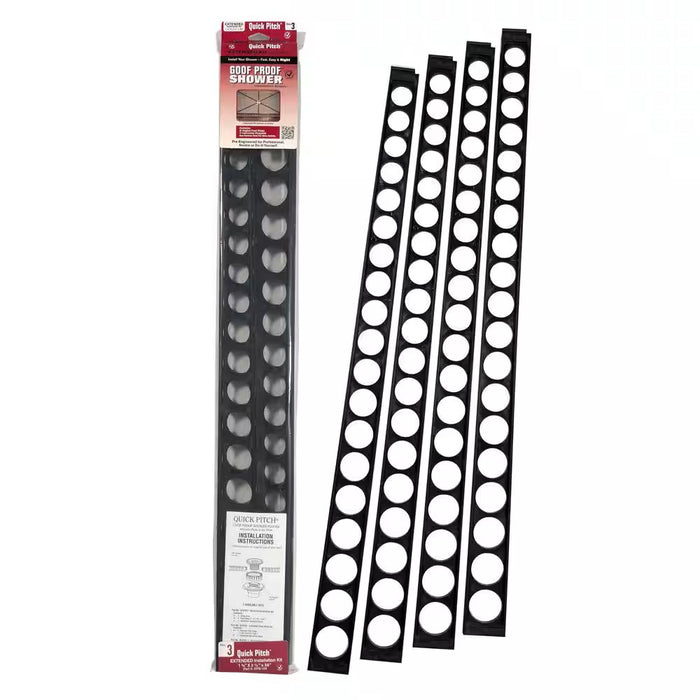

- Extended float sticks are 36″ long and go from 1-3/4″ to 2-1/2" tapered
- Easy to cut lengths needed
- Includes: (4) extended float sticks, installation manual
Description
The Quick-Pitch Float Stick System permits easy construction of shower floors with the proper minimum water drainage slope of 1/4″ per 12″ run. With this time-saving system there is now no chance for an error in measurement, or the need for a level, to achieve a properly sloped shower floor. The Quick Pitch Float Stick System uses a Center Ring and tapered Float Sticks to assure the correct drainage slope in standard or custom shower areas with walls up to 6′ in any direction from the floor drain. This system does not add to the pan liner pre-slope as the Center Ring sits on top of the drain flange bolts.
