Rubi Tools ERGO TILE TRANS Thin Panel Transport Kit

Features

• Used to transport of large thin panel porcelain sheets up to 10.5 ft (3.2 m) long
• Incorporates two Soft-grip controls for comfortable and safe handling
• Handles can rotate to reveal the two rubber stops where to rest the tool to proceed with the installation operation
• Includes two retractable and adjustable guides from 5.25 to 10.5 ft (1.6 to 3.2 m) and 6 vacuum suction cups

• Maximum weight capacity: 176 lbs (80 kg)
• Add the crossbar set (ref. 18819) to provide greater stability, and increase the maximum load up to 264.5 lbs (120 kg)


Details

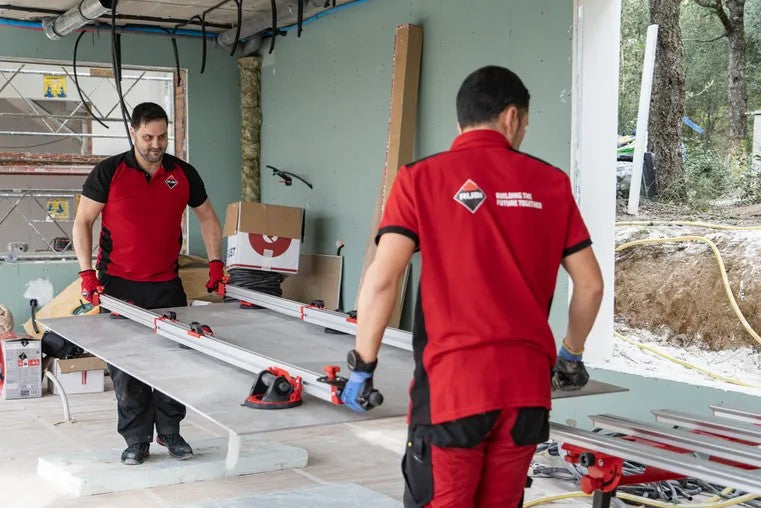

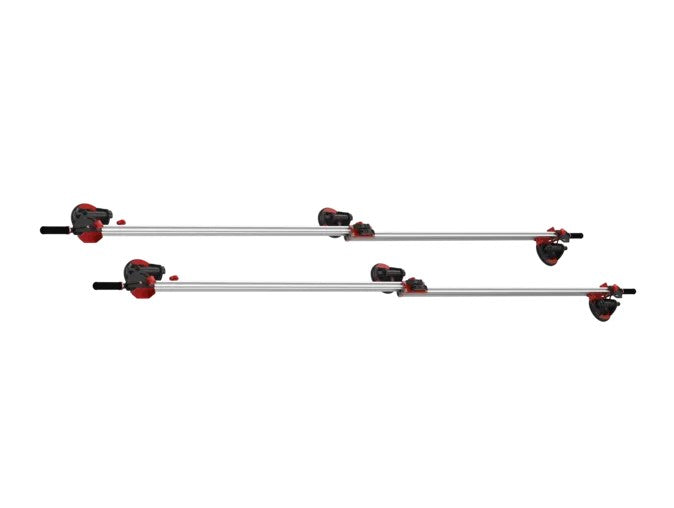

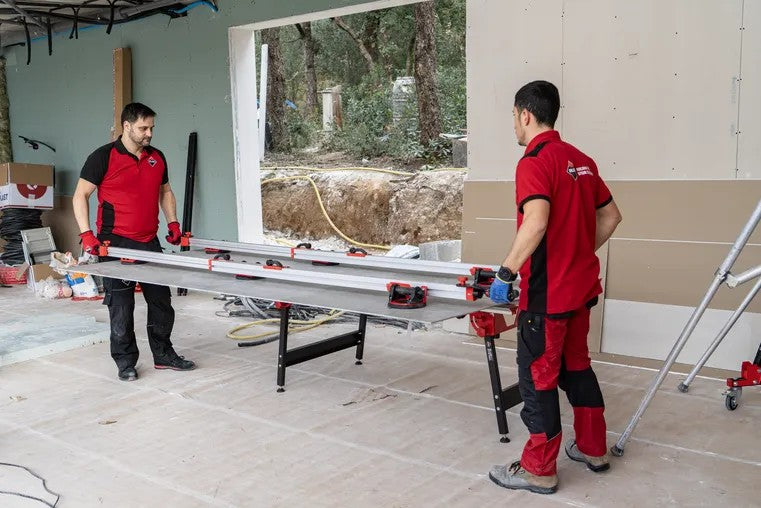

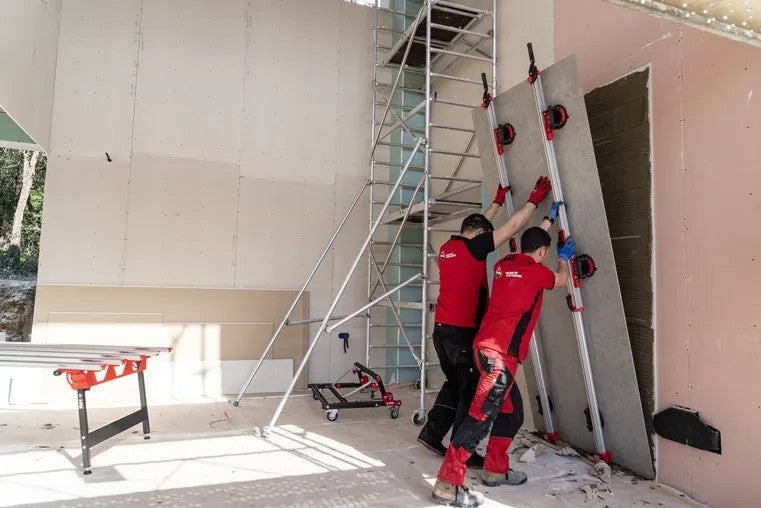

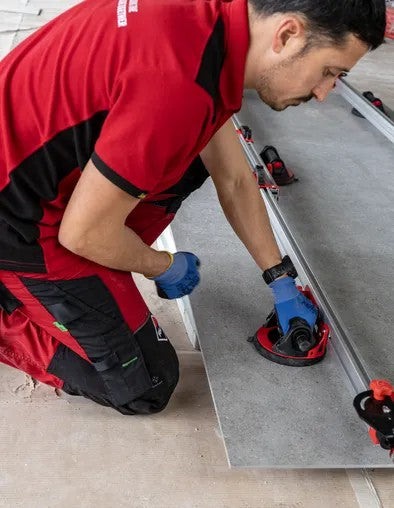

ERGO TILE TRANS has been designed for the transport and handling of large formats of thin thicknesses (SLIM) or any large format with a maximum weight of 80 kg. These are two retractable aluminum profiles that will allow you to handle pieces up to 320 cm long. The distance between the profiles can be adapted according to the user's needs, with 700 mm being the recommended measurement for greater stability. Each of these profiles has 3 vacuum suction cups with a diameter of 160 mm and a high load capacity. This will provide us with greater safety, reliability and stability during transport. The ERGO TILE TRANS incorporates two Soft-grip controls for comfortable and safe handling. These handles can rotate to reveal the two rubber stops where we will rest the tool to proceed with the installation operation. The FAST FIX system guarantees very fast and comfortable assembly and adjustment. The maximum load weight of the ERGO TILE TRANS is 80 kg, however, if we add the set of crossbars (Ref. 28907) apart from providing greater stability, we will also increase the maximum load up to 120 kg.
