Stabila LA 180L Layout Station with Auto Alignment

Features

• Use the Layout Station for laying out to 300ft Cut your labor costs by 50%
• Self-levelling multi-line laser for precision layout
• AUTO ALIGNMENT function: Receiver automatically controls the positioning of the laser at distances of up to 150ft – fully automatic axis transfer and creation of right angles on floors, walls and ceilings, all at the same time
• Precise alignment without losing the reference point
• Pulsed laser lines for precise measurements with the receiver (up to 300ft) indoors and outdoors
• Versatile: 3 vertical lines, 1 horizontal line and plumb-line function
• Extra sharp, easy-to-see lines for fast and efficient work directly on the laser line – visible range up to 100ft indoors
• Unique housing shape for positioning in room corners and over edges (e.g. concrete slab) – rapid checking of right angles
• 5/8"-11 tripod mount

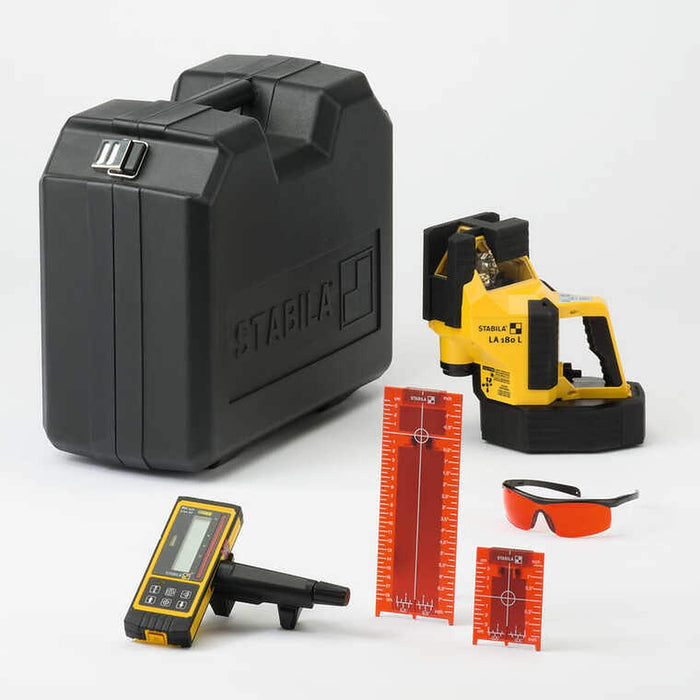

• Includes: LA 180 Laser w/ auto alignment, REC 410 Line RF Receiver w/ bracket, 2 magnetic target plates, laser enhancement glasses, batteries & hard shell case

Applications

• Fast and precise layout tool designed for applications >20 ft up to 300 ft
• Commercial construction, HVAC, masonry, concrete and top end landscape jobs
• Drywall construction – suspending ceilings, positioning interior and partition walls within a range of 300 ft
• Framing - layout wall positions at the push of a button. Quickly establish square, even when the slab or foundation you're working on is out of square
• Concrete – Layout forms perfectly straight and square
• Optional laser and receiver mounts available for most re-usable forming systems

Details

Fully automatic, long range layout. Auto alignment allows you to layout square with only one person in just seconds. Layout over ranges above 50ft is a time-consuming and high risk job. When layout errors occur high follow-up costs will be the result. The LA 180 L self-leveling multi-line laser allows you to layout greater than 20ft up to 300ft fast and accurately. The REC 410 Line RF receiver controls the LA 180 L using the STABILA wireless AUTO ALIGNMENT technology. One press of a button and the laser adjusts automatically to the position of the receiver.
